Aero/Vent™ Jr. Overview

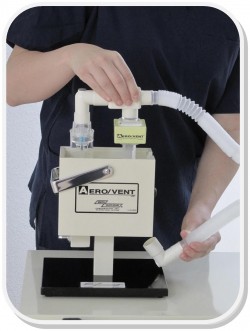

The Aero/Vent™ Jr. Radioaerosol Administration System for ventilation lung scans features simple operation, 2-3 minute dosing, outstanding image quality, convenience and choices.  With Aero/Vent™ Jr. you're able to work safely where you want and how you want.

The Aero/Vent™ Jr. shield may be pole mounted or used on a table top.  Radioaerosol delivery kits come with a choice of straight mouthpiece, scuba-style Safety Shield™ Mouthpiece with protective cap, air cushioned face mask, or specially made for ventilator dependent patients.

The Aero/Vent™Jr. is compact in size, making it popular for on site or mobile imaging.

Aero/Vent™ Jr. Ordering Information

Aero/Vent™ Jr. Lead Shield

#AV-101A

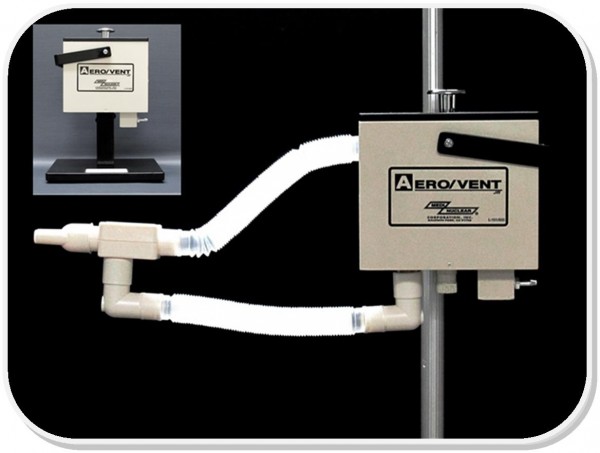

The compact Aero/Vent™ Jr. Lead Shield may be pole mounted or used on a table top.

Features and Benefits

• Full lead lining, including oxygen inlet block, at or above recommended levels.
• Lead cylinder inside shield surrounds nebulizer for extra protection.
• Pole mount or use on a table top.
• Aluminum base for stable table top use.
• Rubber feet on table top stand protects surfaces.
• Removable table top stand for pole mounting.
• Internal pressure port for convenient kit installation.
• Secure-fit oxygen tubing eliminates the possibility of air leakage for more reliable and consistent results.

• Powder coating for ease of cleaning.

Specifications

Material:         Aluminum with Powder Coating

Weight:           Pole Mounted Unit, 4 lbs.

                       Pole Mounted Unit with Table Top Stand, 11 ½ lbs.

Dimensions:   8 in. L x 6 ½ in. D x 10 3/16 in. H

Lead Lining:   Fully lead lined interior

                       Lead lined oxygen inlet block

                       Lead cylinder around nebulizer

Aero/Vent Jr. Patient Interface Options

Aero/Vent™ Jr. Radioaerosol Kits

#AV-100H, #AV-100HS, #AV-100HM

Features and Benefits

• Full patient dosing in less than 3 minutes.
• Excellent 100k-150k count image in just 1 minute.
• Unidirectional airflow allows every breath to be fully medicated for rapid delivery, virtually eliminates breathing resistance and maintains optimally sized particles until inhalation.
• Ultra-fine particles with MMAD of 0.28µM virtually eliminates central airway deposition and allows deep lung deposition for exceptionally clear images.
• Lead shield can be pole mounted or used on a table top.

• HEPA filter with 99.9% trapping efficiency is contained inside the shield.

• Tubing expands 6-24 inches for easy patient positioning upright or supine.
• Radioaerosol kits come with choice of straight mouthpiece, scuba style Safety Shield™ Mouthpiece with protective cap or air cushioned face mask.
• Special kits for ventilator dependent patients are available in a small case quantity of just 6 each.
• Easy set-up and operation.
• Activity required: 40 mCi in a minimum of 2 mL.

Specifications

Nebulizer:                                Medi/Nuclear^® NEB-3A+ Jet Nebulizer

Nebulization Rate:                   0.16 mL/min

Standard Flow Rate:               10 L/min

Max. Reservoir Volume:          6 mL

Working Reservoir Volume:     2 mL

MMAD:                                    0.28 micron

Particle Size Distribution:        <0.2µM                       40.8%

                                                0.2µM to 1.0µM           57.1%

                                                1.0µM to 5.0µM             2.1%

                                                ˃5.0µM                             0

Filter:                                       HEPA with 99.9% efficiency

Tubing:                                    Flexible tubing expands from 6 to 24 inches

Patient Interface:                    Straight mouthpiece, Safety Shield™ Mouthpiece,

                                                or air-cushioned face mask

Aero/Vent™ Jr. Airflow Diagram

• As a patient inhales, medication from the nebulizer moves through the top tube, and into the mouthpiece.
• When the patient exhales, the exhalation is directed through the bottom tube and into a HEPA filter.
• During exhalation, air continues to flow through the nebulizer into the top tube.
• When the next breath is taken, the patient immediately inhales the medication that has filled the top tube.

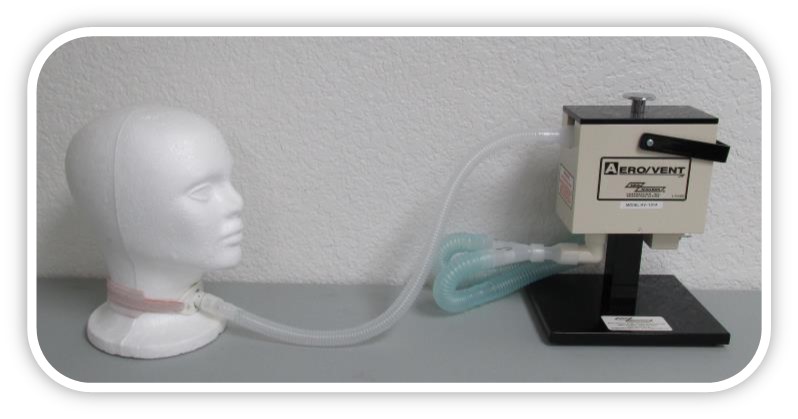

#AV-100HV Special Kit For Ventilator Dependent Patients

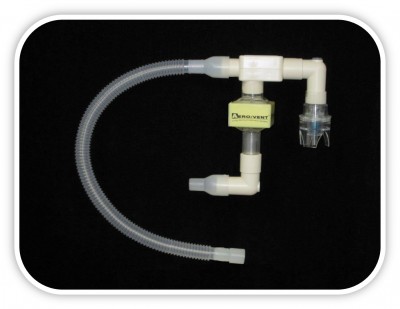

Aero/Vent™ Jr. Kit for Ventilator Dependent Patients

#AV-100HV


Special radioaerosol ventilation imaging kits for patients on ventilators:

• Fit all standard 15mm endotracheal and tracheotomy tubes.
• Come complete in small cases of 6 each.
• Are used with the standard Aero/Vent™ Jr. lead shield.
• Come with step-by-step training Power Point.
