Insta/Vent Plus Radioaerosol Lung Imaging System #IV-600P

 Click here to download complete Insta/Vent™ Plus information.

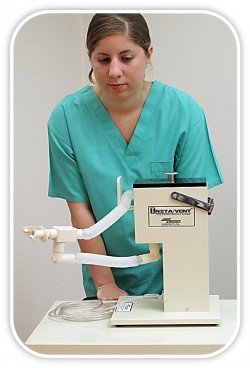

Insta/Vent™ Plus Product Overview

When it comes to ventilation lung scans, the highly acclaimed, Insta/Vent™ Plus Radioaerosol Administration System has it all!  As an upgrade to the single tube Insta/Vent™, dosing can now be done in as little as 30 seconds and SPECT can be performed.  Ultra-fine particles produced by Medi/Nuclear's® proprietary nebulizer virtually eliminate tracheal deposition and 'hot spots', and provide outstanding radiotracer distribution for images of unsurpassed quality.

Designed to support shallow breathers, Insta/Vent™ Plus's exclusive reservoir bag, internal air flow control mechanism, and unidirectional airflow allow every breath to be fully medicated for rapid dosing, virtually eliminates breathing resistance and maintains optimally sized particles until inhalation, thereby improving throughput of critical patients.

For convenience and safety, radioaerosol delivery kits come complete with a choice of scuba style Safety Shield™ Mouthpiece with protective cap, air cushioned face mask or specially made for ventilator dependent patients, and the HEPA filter is fully enclosed inside the shield.  In addition to full lead lining, the Insta/Vent™ shield features additional lead protection around the nebulizer and a protective lead lined bracket in front of the mouthport opening.

As a leader in radioaerosol delivery, the Insta/Vent™ Plus Radioaerosol Delivery System is recommended by physicians, radiologists and nuclear technicians alike.  Free trial, training materials and Appropriate Use Criteria (AUC) available.

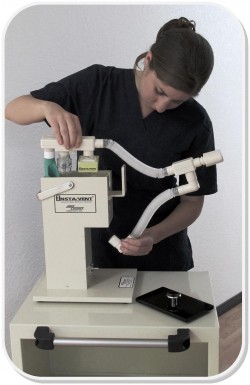

Insta/Vent Plus Set-Up

Insta/Vent™ Plus Radioaerosol Kit

#IV-600P

Features and Benefits

• Proprietary nebulizer produces ultra-fine particles, virtually eliminating central airway deposition, and delivers them deep into the periphery of the lungs for superior image quality.
• Conserving reservoir and internal airflow control mechanism allows dosing to be done in as little as 30 seconds.

• Excellent 100k-150k count image in just 1 minute.
• V/SPECT available with DTPA as approved by FDA, or with PYP, MDP, MIBI or Sulphur Colloid. with a physician's order.

• Unidirectional air flow supports shallow breathers by allowing each breath to be fully medicated, virtually eliminates breathing resistance, and maintains optimally sized particles until inhalation.

• HEPA filter with 99.9% trapping efficiency is fully contained within the shield.

• Two-piece, scuba style Safety Shield™ Mouthpiece reduces possibility of leakage from the corners of a patient's mounth and includes a protective cap to collect contaminated saliva during mouthpiece removal, and then cover it for a safer disposal.

• Tubing expands from 6-24 inches for easy patient positioning upright or supine.
• Radioaerosol kits come complete with choice of scuba style Safety Shield™ Mouthpiece or air cushioned face mask.
• Special kits for ventilator dependent patients are available in a small case quantity of just 6 each.
• Easy set-up and operation.
• Activity required: 40 mCi in a minimum of 2 mL.

Specifications

Nebulizer:                                            Medi/Nuclear^® NEB-3A+ Jet Nebulizer

Nebulization Rate:                               0.16 mL/min

Standard Flow Rate:                           10 L/min

Max. Reservoir Volume:                      6 mL

Working Reservoir Volume:                 2 mL

MMAD:                                                0.28 micron

Particle Size Distribution:                    <0.2µM                        40.8%

                                                            0.2µM to 1.0µM           57.1%

                                                            1.0µM to 5.0µM           2.1%

                                                            ˃5.0µM                        0

Filter:                                                   HEPA with 99.9% efficiency

Breathing Bag:                                    Latex free

Number of Tubes:                               Two, providing unidirectional airflow

Tubing:                                                Flexible tubing expands from 6 to 24 inches

Patient Interface:                                 Scuba style Safety Shield™ or air cushioned face mask

Insta/Vent Plus Air Flow Diagram

Insta/Vent™ Plus Airflow Diagram

• As a patient inhales, medication from the nebulizer moves through the top tube and into the mouthpiece.
• When the patient exhales, an internal airflow control mechanism closes and exhalation is directed through the bottom tube and into a HEPA filter.
• During exhalation, air continues to flow through the nebulizer into a breathing bag, which acts as a reservoir to store aerosol that would normally be wasted during exhalation.
• When the next breath is taken, the patient immediately inhales the medication that has filled the top tube and also the medication from the breathing bag.

Still Available:  Single Tube Insta/Vent™

Always available and still popular is the original, single tube Insta/Vent™.  Choices include #IV-600 Insta/Vent™ with scuba style Safety Shield Mouthpiece  and #IV-600M Insta/Vent™ with air cushioned face mask.

Insta/Vent™ Kit for Ventilator Dependent Patients

#IV-600V

Special radioaerosol ventilation imaging kits for patients on ventilators:

• Fit all standard 15mm endotracheal and tracheotomy tubes.
• Are used with the standard Insta/Vent™ lead shield.
• Come in a small case quantity of just 6 each.

• Come with step-by-step training Power Point.

Portable Insta/Vent Shield #IV-601A

Insta/Vent™ Lead Shield

#IV-601A

The portable Insta/Vent™ lead shield may be used with the single tube Insta/Vent™ kit, the two tube Insta/Vent™ Plus kit, or the special kit for ventilator dependent patients.

Features and Benefits

• Shield completely lead lined at or above recommended levels.
• Lead cylinder inside shield surrounds nebulizer for extra protection.
• Lead lined nose piece provides additional protection at mouthport opening.
• Barbed oxygen hose connection secures oxygen tubing to minimize possibility of leakage.
• Secure-fit oxygen tubing is extra tight to ensure a reliable airflow and more consistent results.
• Internal pressure port for convenient kit installation.
• Powder coated exterior for ease of cleaning.
• Handle for ease of carrying.
• Rubber feet protect surfaces.

Specifications

Material:         Aluminum with Powder Coating.

Weight:           21 lbs.

Dimensions:   10 1/8 in. L x 8 in. W x 13 in. H

Lead Lining:   1/16 in. interior sides.

                       1/8 in. under lid.

                       1/8 in. internal cylinder.

                        Lead lined nose piece.
